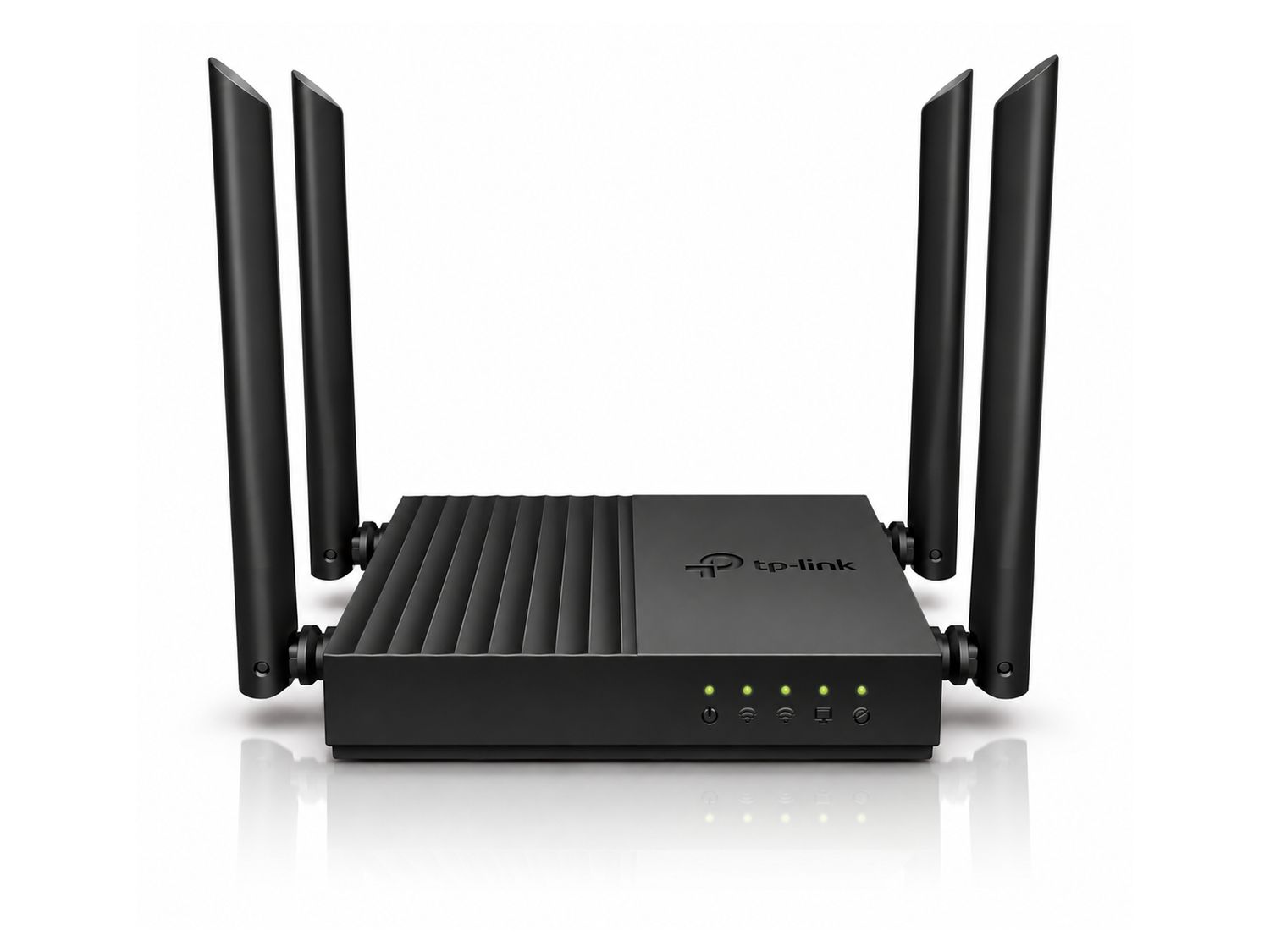

TP-LINK | ARCHER C64 AC1200 Wi-Fi 5 Router

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

The TP-Link Archer C64 AC1200 Wireless MU-MIMO Wi-Fi Router combines reliable high-speed connectivity, intelligent network management and extensive wireless coverage in a compact, contemporary design. Powered by dual-band Wi-Fi 5 technology, it delivers speeds of up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band, making it ideal for streaming, online gaming, video conferencing and everyday browsing. Four high-performance external antennas work alongside Beamforming technology to strengthen wireless coverage, while MU-MIMO, Smart Connect and Airtime Fairness optimise network efficiency across connected devices. Enhanced security, Gigabit Ethernet connectivity, EasyMesh compatibility and convenient management through the TP-Link Tether app complete a versatile networking solution for modern homes and offices.

Specifications

General

• Brand: TP-Link
• Model: Archer C64
• Product Type: AC1200 Wireless MU-MIMO Wi-Fi Router
• Wireless Standard: Wi-Fi 5 (802.11ac Wave 2)
• Wireless Technology: Dual-Band
• Processor: 1.2 GHz CPU
• Recommended Coverage: Up to 3-Bedroom Homes

Wireless Performance

• Combined Wireless Speed Class: AC1200
• 5 GHz Wireless Speed: Up to 867 Mbps
• 2.4 GHz Wireless Speed: Up to 400 Mbps
• 5 GHz Standards: IEEE 802.11ac/n/a
• 2.4 GHz Standards: IEEE 802.11n/b/g
• MU-MIMO Technology: Supports Simultaneous Communication with Multiple Compatible Devices
• Beamforming Technology: Directs Wireless Signals Towards Connected Devices
• Smart Connect: Automatically Directs Devices to the Most Suitable Wireless Band
• Airtime Fairness: Improves Network Efficiency by Optimising Wireless Airtime Allocation

Antennas & Coverage

• External Antennas: 4 Fixed High-Performance Antennas
• Signal Coverage: Multi-Directional Wireless Distribution
• Beamforming: Yes
• Wi-Fi Capacity: Medium
• EasyMesh Compatibility: Yes
• Mesh Networking: Supports Compatible EasyMesh Devices for Extended Coverage and Seamless Roaming

Operating Modes

• Wireless Router Mode
• Access Point Mode

Network Security

• SPI Firewall: Yes
• IP and MAC Address Binding: Yes
• Wireless Encryption: WPA/WPA2, WPA-PSK/WPA2-PSK and WPA3-SAE
• Guest Network: 2.4 GHz and 5 GHz
• Parental Controls: URL Filtering and Time Controls

Hardware & Connectivity

• WAN Port: 1 × Gigabit Ethernet
• LAN Ports: 4 × Gigabit Ethernet
• WPS/Reset Button: Yes
• Power Supply: 12V / 1A

Network Protocols

• IPv4: Supported
• IPv6: Supported
• WAN Connection Types:
  • Dynamic IP
  • Static IP
  • PPPoE (Dual Access)
  • PPTP (Dual Access)
  • L2TP (Dual Access)

Network Management

• TP-Link Tether App: Yes
• Web-Based Management: Yes
• Quality of Service (QoS): Device-Based
• OTA Firmware Updates: Supported
• TP-Link ID: Supported
• Dynamic DNS: Supported
• One-Click EasyMesh Configuration: Supported with Compatible Devices

Advanced Networking Features

• NAT Forwarding: Port Forwarding, Port Triggering, UPnP and DMZ
• IPTV: IGMP Proxy, IGMP Snooping, Bridge and Tag VLAN
• DHCP: Server, Client List and Address Reservation
• Dynamic DNS Services: TP-Link, NO-IP and DynDNS

Network Services

• Web Management: HTTP/HTTPS – TCP Ports 80/443
• DNS: TCP/UDP Port 53
• DHCP Server: UDP Port 67
• App Management: UDP Port 20002
• Alexa Device Discovery: UDP Port 5353

Wireless Transmission Power

• CE 2.4 GHz: Below 20 dBm
• CE 5.15–5.25 GHz: Below 23 dBm
• FCC 2.4 GHz and 5 GHz: Below 30 dBm

Wireless Reception Sensitivity

5 GHz:

• 802.11a 6 Mbps: -95 dBm
• 802.11a 54 Mbps: -77 dBm
• 802.11ac VHT20 MCS8: -71 dBm
• 802.11ac VHT40 MCS9: -67 dBm
• 802.11ac VHT80 MCS9: -63 dBm

2.4 GHz:

• 802.11g 6 Mbps: -96 dBm
• 802.11g 54 Mbps: -78 dBm
• 802.11n HT20 MCS7: -77 dBm
• 802.11n HT40 MCS7: -74 dBm
• 802.11ac VHT20 MCS8: -73 dBm
• 802.11ac VHT40 MCS9: -68 dBm

System Requirements

• Supported Operating Systems: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, macOS, NetWare, UNIX and Linux
• Browser Compatibility: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or Other Compatible Browsers
• Internet Connection: Cable or DSL Modem
• Internet Service Provider Subscription Required for Internet Access

Operating Conditions

• Operating Temperature: 0°C–40°C (32°F–104°F)
• Operating Humidity: 10%–90%, Non-Condensing
• Storage Humidity: 5%–90%, Non-Condensing
• Certification: CE

Dimensions

• Width: 120 mm / 4.7 in
• Depth: 120 mm / 4.7 in
• Height: 27.9 mm / 1.1 in

Package Contents

• TP-Link Archer C64 Wireless Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
