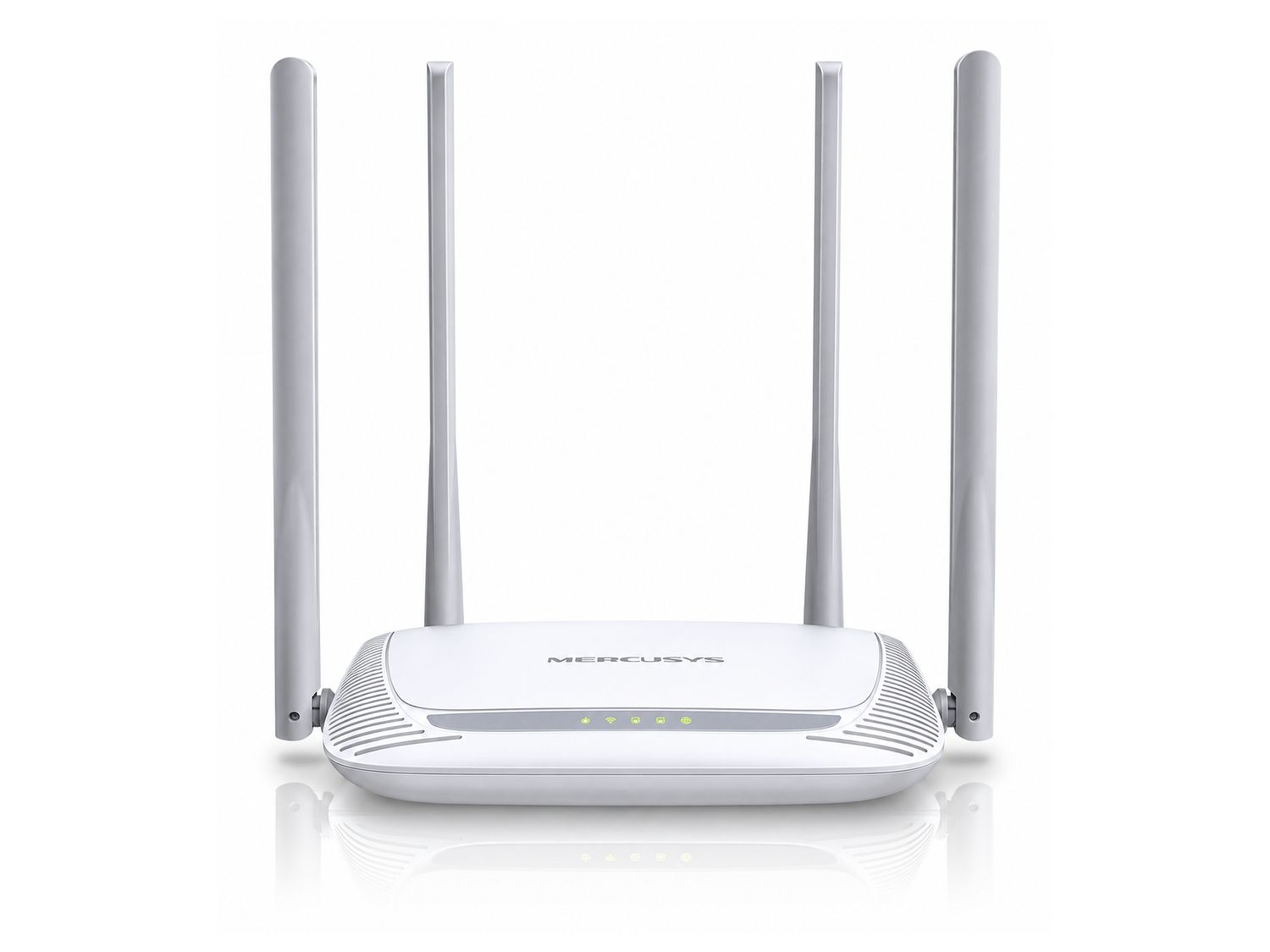

MERCUSYS | MW325R N300 Wireless Router

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

Enjoy dependable wireless connectivity and extensive coverage with the Mercusys MW325R 300Mbps Enhanced Wireless N Router, designed to bring reliable internet access to homes, offices and everyday digital environments. Four powerful 5dBi high-gain antennas help extend wireless reach and strengthen signal stability, while speeds of up to 300Mbps support HD streaming, online gaming, web browsing and file downloads. Operating on the 2.4 GHz frequency band, the router combines straightforward web-based installation with essential network security, guest access and flexible management options. A compact, contemporary design and multiple Ethernet connections complete a practical networking solution for keeping compatible devices connected with ease.

Specifications

General

• Brand: Mercusys
• Model: MW325R
• Product Type: Enhanced Wireless N Router
• Maximum Wireless Speed: 300Mbps
• Wireless Frequency: 2.4–2.5 GHz
• Wireless Technology: Single-Band
• Recommended Use: Home and Office Networking

Wireless Performance

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• 802.11n Wireless Speed: Up to 300Mbps (Dynamic)
• 802.11g Wireless Speed: Up to 54Mbps (Dynamic)
• 802.11b Wireless Speed: Up to 11Mbps (Dynamic)
• Wireless Transmission Power: Below 20 dBm
• Wireless Radio Enable/Disable: Yes
• WDS Bridge: Supported

Antennas & Coverage

• Number of Antennas: 4
• Antenna Type: Fixed Omnidirectional
• Antenna Gain: 5dBi Each
• High-Gain Signal Enhancement: Yes
• Designed for Extended Wireless Coverage and Improved Signal Stability

Wireless Reception Sensitivity

• 270Mbps: -70 dBm @ 10% PER
• 130Mbps: -72 dBm @ 10% PER
• 54Mbps: -74 dBm @ 10% PER
• 11Mbps: -87 dBm @ 10% PER
• 6Mbps: -92 dBm @ 10% PER
• 1Mbps: -94 dBm @ 10% PER

Ethernet Connectivity

• LAN Ports: 3 × 10/100Mbps
• WAN Port: 1 × 10/100Mbps
• RJ45 Ethernet Connectivity: Yes

Network Security

• Wireless Encryption: WPA-PSK / WPA2-PSK
• IP and MAC Address Binding: Yes
• Guest Network: 2.4 GHz
• Access Control: Yes

Network Configuration

• Supported WAN Connection Types:
  • Dynamic IP
  • Static IP
  • PPPoE
  • L2TP
  • PPTP
• Network Protocol: IPv4
• DHCP Server: Yes
• DHCP Client List: Yes
• Dynamic DNS: Oray

Advanced Networking Features

• Port Forwarding: Virtual Server
• UPnP: Supported
• DMZ: Supported
• WDS Bridging: Supported
• Guest Network: Supported

Management & Installation

• Web-Based Installation: Yes
• Guided Setup Interface: Yes
• Local Management: Supported
• Remote Management: Supported
• Access Control: Supported
• Reset Button: Yes

Power

• External Power Supply: 5V DC / 0.6A
• Power Adapter: Included

Dimensions

• Width: 167 mm
• Depth: 118 mm
• Height: 33 mm

Operating Conditions

• Operating Temperature: 0°C–40°C (32°F–104°F)
• Storage Temperature: -40°C–70°C (-40°F–158°F)
• Operating Humidity: 10%–90%, Non-Condensing
• Storage Humidity: 5%–90%, Non-Condensing

Certifications

• CE
• RoHS

Package Contents

• Mercusys MW325R 300Mbps Enhanced Wireless N Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
