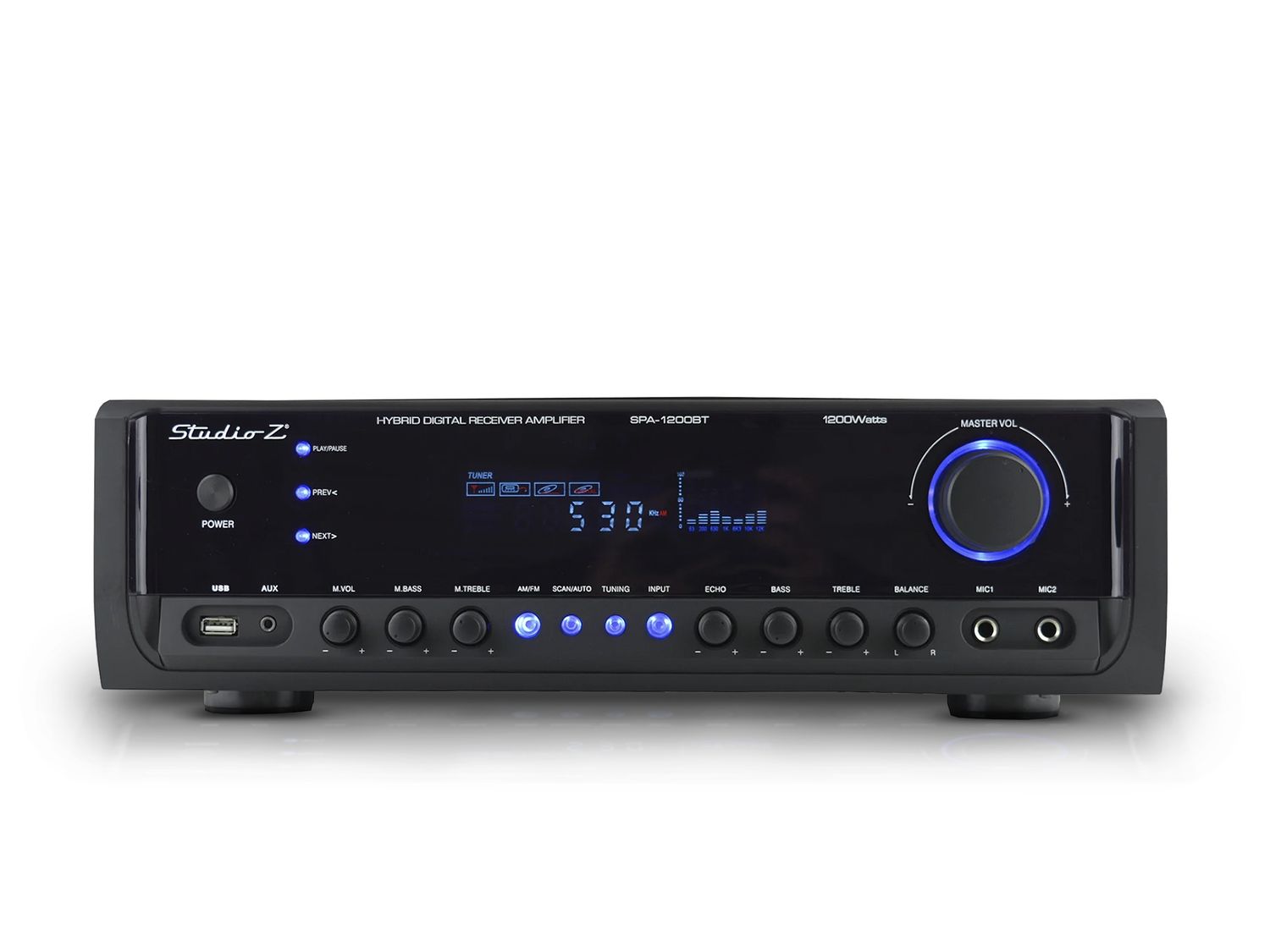

Studio Z | SPA-1200BT Stereo Amplifier FM Radio/BT/USB Player
Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.
Description
Designed to serve as the central hub of any home audio system, the Studio Z Digital Hybrid Radio Receiver and Amplifier combines versatile playback options with professional-grade amplification. This all-in-one unit delivers 60W per channel at 8Ω (100W at 4Ω), providing ample power to drive bookshelf or floor-standing speakers while maintaining pristine audio clarity. The integrated digital tuner offers both AM/FM reception with memory storage for 60 stations, complemented by multiple input sources including USB, SD card, auxiliary, and dual microphone connections. Intuitive front-panel controls allow precise adjustment of master volume, EQ settings, and microphone effects, making the system equally suitable for casual listening, karaoke sessions, or public address applications.
Technical Specifications
Amplification:
- Power output:
- 2 × 60W RMS @ 8Ω
- 2 × 100W RMS @ 4Ω
- Peak power: 1,200W
Input Connectivity:
- Microphone: 2 × 6.35mm (1/4") jacks
- Digital media:
- USB 2.0 port (MP3/WMA playback)
- SD card slot (up to 32GB)
- Analogue audio: 3.5mm auxiliary input
- Radio tuner:
- AM/FM digital receiver
- 30 station presets per band
Audio Controls:
- Master channel:
- Volume, bass, treble, balance
- Microphone channels:
- Individual volume, bass, treble, echo
Output Options:
- Speaker terminals: A/B selector
- Record output: RCA line level
- Auxiliary output: 3.5mm jack
Power Supply:
- Voltage: 110-120V/220-240V switchable
- Consumption: 250W maximum
Physical Characteristics:
- Dimensions: 430 × 310 × 120mm (16.9 × 12.2 × 4.7 inches)
- Weight: 5.1kg (11.2lbs)
- Finish: Black powder-coated steel
Key Features
Multi-Source Playback
Seamlessly switch between radio broadcasts, digital media files, and external audio sources with dedicated transport controls for USB/SD playback including play/pause and track navigation.
Professional-Grade Microphone Inputs
Independent EQ and echo effects on both microphone channels enable tailored vocal reproduction for announcements or entertainment applications.
Intelligent Radio Tuner
Automatic station scanning and memory presets simplify access to preferred broadcasts, with digital signal processing for improved reception clarity.
Flexible Speaker Management
A/B output selection allows simultaneous connection of multiple speaker pairs or zone-based audio distribution.
Rack-Mountable Design
Standard 19-inch rack compatibility facilitates integration with existing AV equipment while conserving space.
Typical Applications
- Whole-home audio distribution
- Background music systems
- Public address setups
- Karaoke entertainment
- Radio monitoring stations
Engineered for both performance and convenience, this hybrid receiver-amplifier delivers professional audio capabilities in a user-friendly package. The robust construction ensures reliable operation, while comprehensive connectivity options accommodate virtually any audio source. Whether enhancing a living room sound system or powering a multi-zone installation, the unit provides exceptional versatility with precise control over every aspect of sound reproduction.
