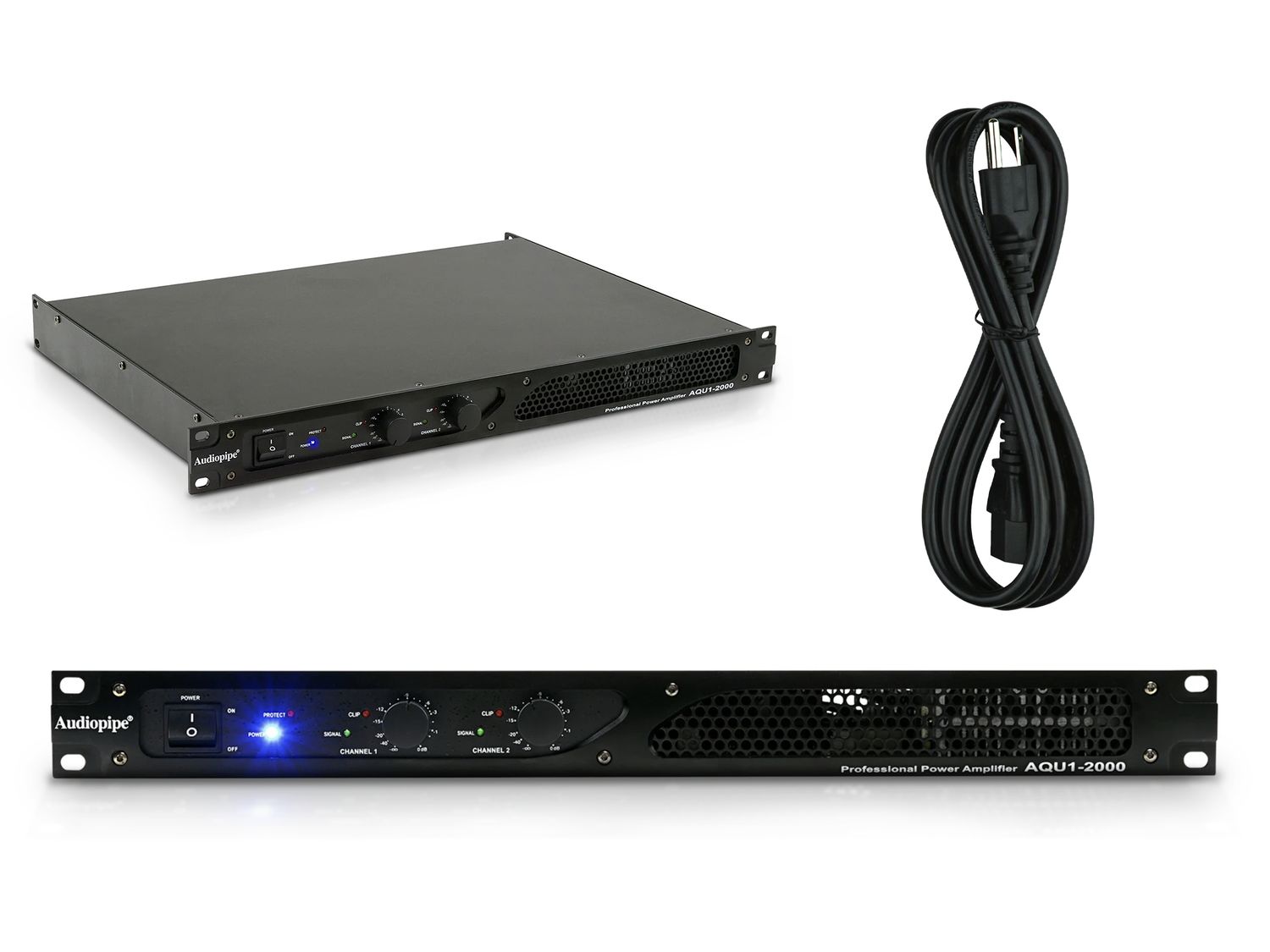

Audiopipe | AQU1-2000 Professional Power Amplifier

• Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

Engineered for professional audio applications requiring both power and precision, the AQU1-2000 power amplifier delivers exceptional performance across multiple impedance loads. Its robust 200W output at 4Ω and 130W at 8Ω ensures dynamic headroom for demanding speaker configurations, while the comprehensive protection circuitry safeguards against technical faults. The unit's innovative variable-speed cooling system maintains optimal operating temperatures during extended use, complemented by intuitive LED status monitoring. With professional-grade XLR and TRS inputs, this rack-mountable amplifier combines installation flexibility with reliable performance in a compact 1U form factor, making it equally suitable for permanent installations and touring systems.

Technical Specifications

Power Output:

• Stereo mode, 4Ω: 200W RMS per channel
• Stereo mode, 8Ω: 130W RMS per channel

Input Connectivity:

• Balanced XLR input
• 1/4" TRS jack input
• Input sensitivity: 0.77V
• Input impedance: 10kΩ (balanced)

Protection Systems:

• Short circuit protection
• Open circuit protection
• Thermal overload protection
• Ultrasonic/RF interference protection
• Reactive load stability
• Current limiting circuitry

Cooling System:

• Variable-speed fan with thermal regulation

Visual Indicators:

• Dual-channel green signal LEDs
• Red clip indicators
• Blue power status LED
• Red protection alert LED

Electrical Requirements:

• Voltage: 115V AC (60Hz) / 230V AC (50Hz)
• Power consumption: 800W maximum

Physical Dimensions:

• Rack space: 1U (45mm/1.77")
• Width: 482mm (19.0")
• Depth: 320mm (12.6")
• Weight: 8.3kg (18.3lbs)

Signal Performance:

• Frequency response: 20Hz-20kHz (±0.5dB)
• Signal-to-noise ratio: >100dB
• Total harmonic distortion: <0.05%

Key Features

Advanced Power Management
The amplifier's dual-mono design ensures channel separation and stable performance across varying impedance loads from 4-8Ω, making it compatible with most professional speaker systems.

Professional Connectivity
Balanced XLR and TRS inputs accommodate both studio and live sound equipment, while the rear-panel voltage selector adapts to international power standards.

Intelligent Thermal Control
An automatically regulated cooling system adjusts fan speed according to thermal load, reducing noise during low-demand operation while preventing overheating during sustained high-power use.

Comprehensive Monitoring
Front-panel LED indicators provide instant visual feedback on signal presence, limiting conditions, and protection status for both channels.

Installation Ready
The 19" rack-mountable chassis with shallow depth facilitates integration into standard equipment racks, road cases, or portable setups.

Applications

• Live sound reinforcement systems
• Permanent venue installations
• Studio monitor control
• Broadcast audio environments
• Portable PA systems

Designed for audio professionals who demand both reliability and performance, the AQU1-2000 combines robust power delivery with thoughtful engineering in a space-efficient package. The amplifier's combination of protective features and clean signal path ensures consistent performance across diverse operating conditions, from critical studio applications to demanding
