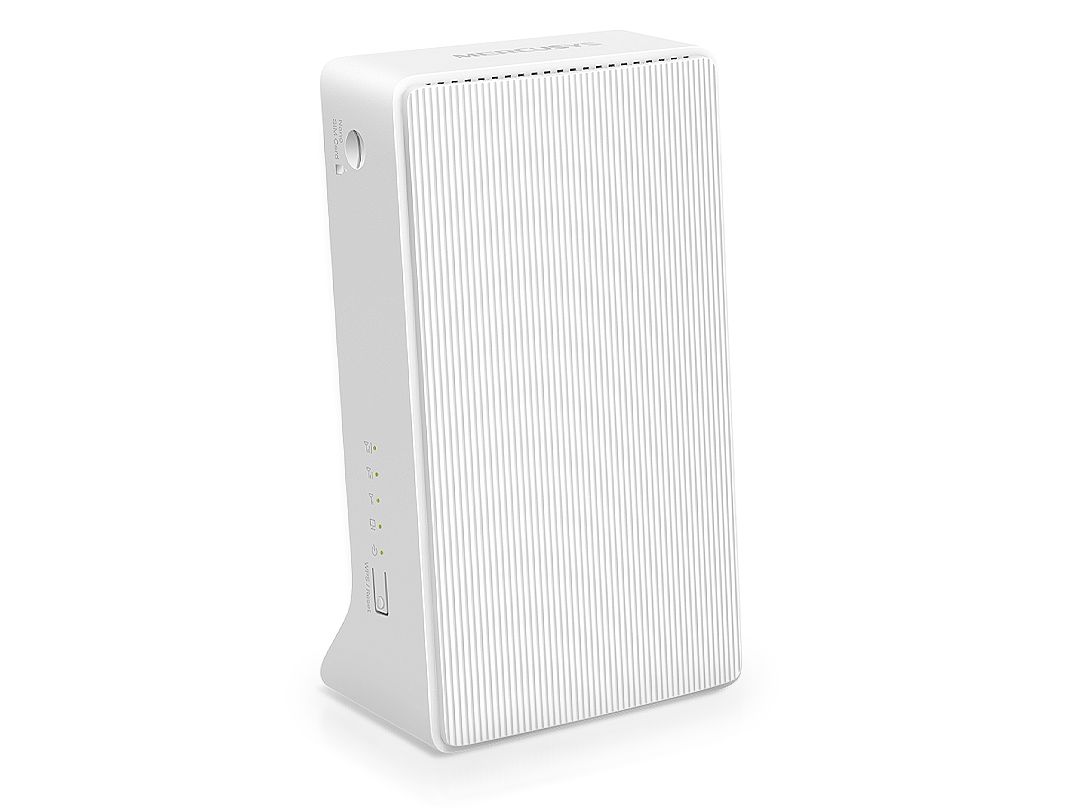

Mercusys | MB110-4G Wireless N 4G LTE Router

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

Stay connected wherever you are with the Mercusys 300 Mbps Wireless N 4G LTE Router. Designed to provide stable internet access for households, small offices, or on-the-go needs, it supports up to 32 Wi-Fi devices simultaneously. With download speeds of up to 150 Mbps, simple SIM card compatibility, and the option to switch to wired broadband when required, it offers reliable flexibility for seamless connectivity.

Specifications

• Network Type (EU):
  • FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
  • TDD-LTE: B38/B40 (2600/2300 MHz)
  • HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
• Network Type (UN):
  • FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)
  • TDD-LTE: B40 (2300 MHz)
  • HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)
• Wi-Fi Class: N300
• Wireless Speed: 300 Mbps (2.4 GHz)
• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Reception Sensitivity: 11g 54M: -74 dBm; 11n HT20: -71 dBm; 11n HT40: -68 dBm
• Transmission Power: < 20 dBm (2.4 GHz)
• Wireless Security: WPA-PSK / WPA2-PSK
• Wireless Functions: Smart Connect, WPS, Wireless Schedule, Wireless Client Statistics

Hardware

• Dimensions: 95 × 61.05 × 165.97 mm (3.74 × 2.40 × 6.53 in)
• Interfaces:
  • 1 × 10/100 Mbps LAN/WAN port
  • 1 × 10/100 Mbps LAN port
  • 2 × 4G/3G external antenna ports
  • 1 × Nano SIM card slot
• Antenna: Internal
• Buttons: WPS/Reset
• Power Supply: 9V/0.85A
• LED Indicators: Power, LAN, 3 × Signal
• LTE Standard: Cat 4, 150 Mbps download / 50 Mbps upload

Software

• Operation Modes: 3G/4G Router, Wireless Router
• Cellular Modes: 4G Preferred, 4G Only, 3G Only
• APN Management: Data Roaming, Network Search, Profile Create, APN Settings, ISP File Upgrade, PIN Management
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• NAT Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Protocols: IPv4, IPv6
• Data Settings: Data Statistics, Data Limit
• Parental Controls: Time Control, Website Filtering
• Guest Network: 2.4 GHz Guest Network
• DHCP: Server, Client List, Address Reservation
• DDNS: Mercusys DDNS, DynDNS, NO-IP
• SMS Management: Inbox, New Message, Outbox, Drafts
• Security: IPv4 SPI Firewall, IPv6 Firewall, Access Control, Service Filtering, IP & MAC Binding
• System Settings: Time Settings, LED Control, Diagnostics, Firmware Upgrade, Backup & Restore, Reboot, Administration, System Log, CWMP Settings
• Device Management: Mercusys App, Web GUI
• Languages: English, Spanish, Italian, Polish, Russian
• TR-069: Supported

Package Contents

• 300 Mbps Wireless N 4G LTE Router (MB110-4G)
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Environment

• Operating Temperature: 0°C–40°C (32°F–104°F)
• Storage Temperature: -40°C–60°C (-40°F–140°F)
• Operating Humidity: 10%–90% (non-condensing)
• Storage Humidity: 5%–90% (non-condensing)
