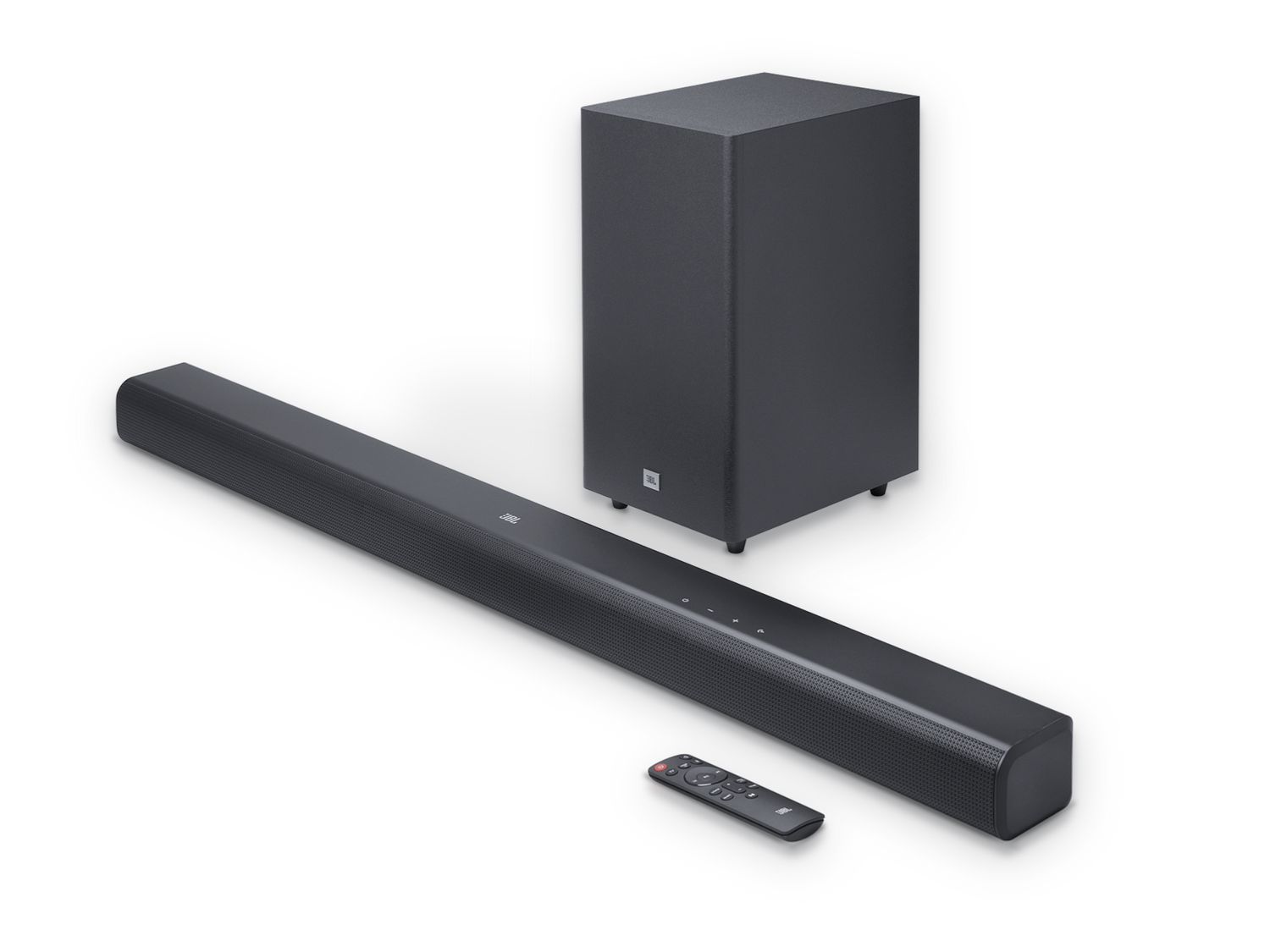

JBL | CINEMA SB580 3.1 Channel Soundbar with Wireless Subwoofer

Surround yourself in a rich, cinematic soundscape with a sleek soundbar system that balances clarity, depth, and power. The JBL Cinema SB580 delivers a commanding 440 watts of immersive Virtual Dolby Atmos® audio through a refined 3.1-channel configuration, accompanied by a wireless 6.5” subwoofer for resonant, thunderous bass. Designed with a dedicated centre channel for crystal-clear dialogue, it enhances every viewing experience, from films and series to games and live sports. With versatile connections including HDMI eARC, optical, and Bluetooth, plus seamless music streaming when the TV is off, the SB580 brings commanding home audio into a compact, modern design.

Specifications

Model

• JBL Cinema SB580

Audio System

• Sound system: 3.1 channel
• Total power output: 440W (Max @ THD 1%)
  • Soundbar: 240W
  • Subwoofer: 200W
• Soundbar drivers: 3 x (45 x 100 mm) racetrack drivers + 3 x 13 mm tweeters
• Subwoofer driver: 6.5” (165 mm) wireless
• Frequency response: 40Hz–20kHz (-10dB)
• Standby power: < 0.5W
• Operating temperature: 0°C to 45°C

Connectivity & Inputs

• Audio inputs: 1 Optical, Bluetooth, USB (USB playback available in US version only; otherwise for service use)
• HDMI:
  • Input: 1
  • Output (eARC): 1
  • HDCP version: 2.3
• USB type: Type A
• USB rating: 5V DC, 0.5A
• Supported file format: MP3
• MP3 codecs: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16–48 kHz

Wireless & Bluetooth

• Bluetooth version: 5.3
• Bluetooth profiles: A2DP 1.3, AVRCP 1.6
• Bluetooth frequency: 2400 MHz – 2483.5 MHz
• Transmission power: <10 dBm (EIRP)
• Modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G wireless transmission frequency: 2402–2481 MHz
• 2.4G wireless modulation: GFSK

Dimensions & Weight

• Soundbar (W x H x D): 950 × 64 × 80 mm / 37.4" × 2.5" × 3.1"
• Subwoofer (W x H x D): 200 × 404 × 250 mm / 7.9" × 15.9" × 9.9"
• Soundbar weight: 2.6 kg / 5.7 lbs
• Subwoofer weight: 5.7 kg / 12.6 lbs
• Packaging dimensions (W x H x D): 1025 × 235 × 397 mm / 40.4" × 9.3" × 15.6"
• Total packaging weight: 10.4 kg / 22.9 lbs

Crafted for an immersive audio experience that fills the room, while maintaining clean, modern aesthetics and seamless functionality.
