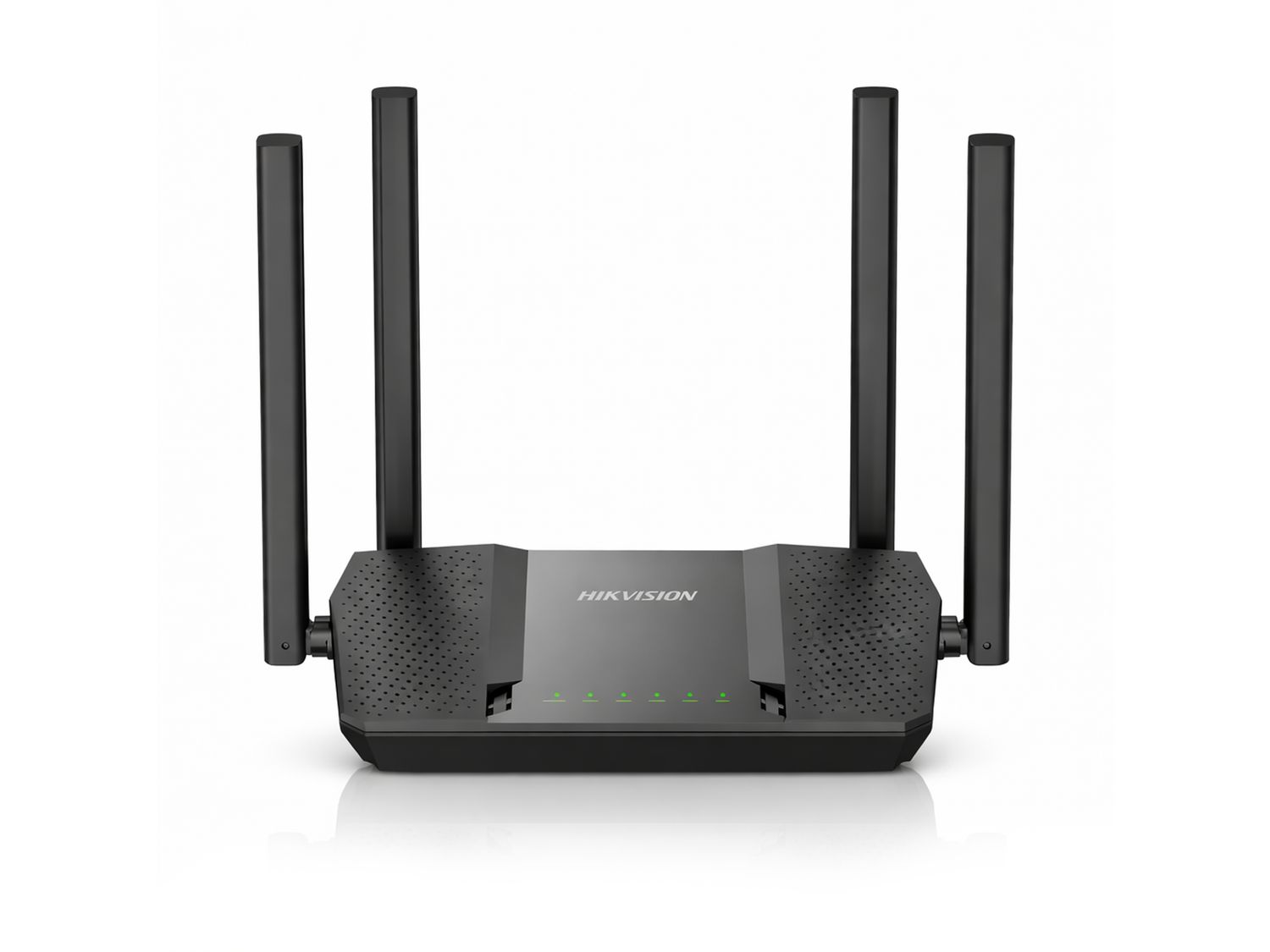

Hikvision | DS-3WR12C-E AC1200 Dual Band Wireless Router
Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.
Description
Reliable connectivity meets refined performance in a dual-band AC1200 wireless router designed to support modern digital lifestyles. Seamless switching between 2.4 GHz and 5 GHz bands ensures stable connections for everyday browsing, streaming and gaming, while intelligent signal management prioritises faster networks when available. High-gain antennas and advanced wireless technologies deliver consistent coverage throughout the home, complemented by app-based control for effortless network management. A balanced combination of speed, security and flexibility makes it well suited for connected households and small offices.
Specifications
Product Type
- AC1200 dual-band Wi-Fi 5 wireless router
General
Dimensions (W × H × D)
- Product: 228.5 × 128.8 × 170.8 mm
- Package: 247 × 225 × 55 mm
Weight
- Net: 0.237 kg
- Gross: 0.526 kg
Installation Options
- Desk-mounted
- Wall-mounted
Operating Conditions
- Temperature: 0°C to 40°C
- Humidity: 10% to 90% RH (non-condensing)
Storage Conditions
- Temperature: -40°C to 70°C
- Humidity: 5% to 95% RH (non-condensing)
Package Contents
- Wi-Fi router
- Power adapter
- CAT5e network cable
- Quick start guide
- Regulatory and safety information
Wireless Performance
Maximum Wi-Fi Speed
- Up to 1200 Mbps
- 5 GHz: 866 Mbps
- 2.4 GHz: 300 Mbps
Wireless Standards
- IEEE 802.11a/n/ac (5 GHz)
- IEEE 802.11b/g/n (2.4 GHz)
Frequency Bands
- 2.4 GHz and 5 GHz
Coverage Area
- Up to 80–100 m² (860–1080 ft²)
Maximum Devices Supported
- Up to 128 devices
- Recommended: Up to 30 devices
Wireless Features
- MU-MIMO support
- Beamforming technology
- Dual-band operation with intelligent band selection
Antenna
- 4 high-gain antennas
- Gain: 5 dBi
Transmit Power
- <20 dBm (2.4 GHz)
- <23 dBm (5 GHz)
Hardware
Ports
- 1 × 10/100 Mbps WAN port
- 3 × 10/100 Mbps LAN ports
Buttons
- Reset button
- WPS button
Indicators
- Power
- WAN
- LAN
- 2.4 GHz Wi-Fi
- 5 GHz Wi-Fi
- WPS
Memory
- RAM: 128 MB DDR2
- ROM: 128 MB NAND
Power
- Power supply: DC 12V / 1A
- Maximum consumption: ≤ 6 W
Software & Features
Operating Modes
- Router mode
- Wireless extender mode
- Access point mode
WAN Types
- DHCP
- Static IP
- PPPoE
Network Functions
- DHCP server and client list
- IPv4 / IPv6 support
Security Features
- WPA/WPA2-PSK encryption
- Firewall protection
- WPS secure connection
- Hidden SSID support
- Device access control
Parental Controls
- Speed limits
- Scheduled access
- URL filtering
- Custom user profiles
Advanced Functions
- NAT forwarding (Port mapping, DMZ, UPnP)
- DDNS (Oray)
- VPN client (PPTP, L2TP)
- VLAN/IPTV support
- Wi-Fi optimisation and diagnostics
Management
- Web interface (PC and mobile)
- App control (HPP, HC)
- TR069 remote management
System Features
- Web and cloud firmware upgrades
- Automatic updates
- System logging
