Description

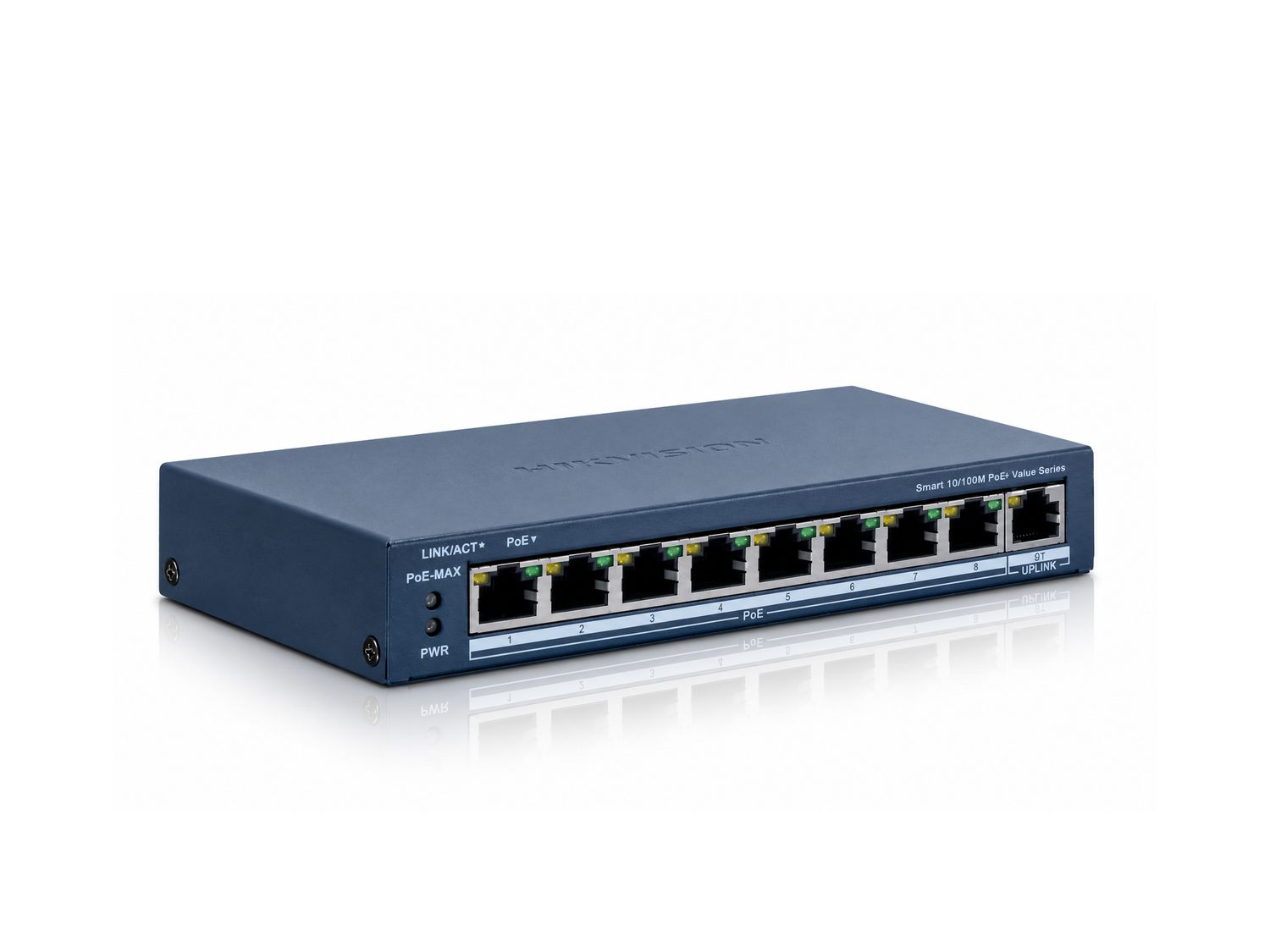

Built for modern surveillance environments, the 8 Port Fast Ethernet Smart PoE Switch delivers dependable network performance, intelligent management features and efficient power distribution in one streamlined solution. Designed for IP cameras and security systems, its robust metal housing, advanced PoE watchdog technology and long-range transmission capabilities provide stable connectivity across demanding installations. With VLAN support, surge protection and remote management integration, every connection remains secure, organised and ready for uninterrupted monitoring.
Specifications
General
Housing material: Metal
Cooling design: Fan-free
Installation options: Desk-mounted or wall-mounted
Dimensions (W × H × D): 170 × 27.6 × 93.1 mm (6.69 × 1.09 × 3.67 in)
Net weight: 0.4 kg (0.9 lb.)
Gross weight: 0.9 kg (2.0 lb.)
Power & Protection
Power supply: 54VDC, 1.2A
Maximum power consumption: 65W
Idle power consumption: 5W
Surge protection: 6 kV
Operating Conditions
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to 85°C (-40°F to 185°F)
Operating humidity: 5% to 95% non-condensing
Relative humidity: 5% to 95% non-condensing
Network Parameters
Ports:
8 × 10/100 Mbps PoE ports
1 × Gigabit RJ45 port
MAC address table: 8K
Internal cache: 4 Mbits
Switching Capacity
Whole-device performance: 5.6 Gbps
Port performance: 3.6 Gbps
Packet Forwarding Rate
Whole-device performance: 4.17 Mpps
Port performance: 2.68 Mpps
Smart Features
Long-Range PoE Transmission
Ports 1–8 support transmission distances of up to 300 m
Performance may vary depending on cable quality and camera model.
PoE Watchdog
Automatically detects and restarts unresponsive cameras connected to ports 1–8
Port Isolation
Ports 1–8 support isolation mode for improved network security
Isolated ports remain able to communicate with ports outside the isolation group
VLAN Support
Supports IEEE 802.1Q VLAN
Configurable VLAN IDs from 1–4094
Supports Trunk and Access port modes
Maximum VLAN capacity: 4094
Loop Prevention
Supports IEEE 802.1D STP
Supports IEEE 802.1w RSTP
System Management
Web-based device management supported
DHCP client enabled by default for automatic IP assignment
Super IP fixed address support: 10.180.190.200
Remote management supported through Hik-Central Pro and Hik-Partner Pro
