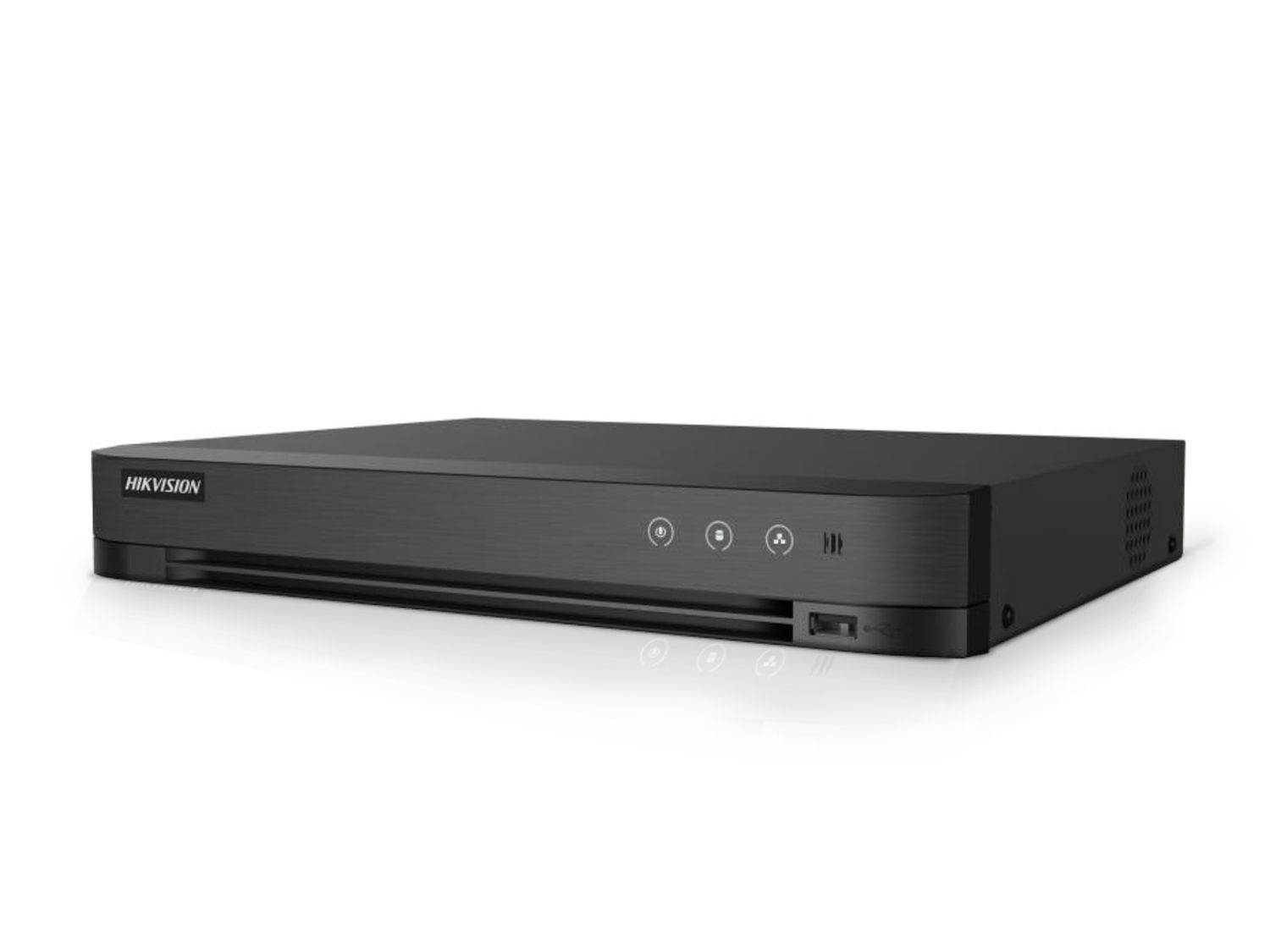

HIKVISION | 16 Channel 1080p H.265 DVR with AcuSense iDS-7216HQHI-M1/S

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

Engineered for advanced surveillance applications, this 1U rack-mountable DVR combines intelligent analytics with exceptional recording capabilities. Sixteen channels support hybrid connectivity for analogue, HDTVI, AHD, HDCVI, and IP cameras, while deep learning algorithms accurately distinguish between human and vehicle movement to minimise false alarms. The system employs efficient H.265 Pro+ compression technology to maximise storage efficiency, accommodating resolutions up to 3K/5MP Lite at 12fps. With dual HDMI and VGA outputs supporting 4K resolution, facial detection capabilities, and two-way audio functionality, this solution delivers comprehensive monitoring performance in a compact form factor suitable for commercial and institutional installations.

Technical Specifications

Video Management

• Input Channels:
  • 16-channel hybrid input (HDTVI/AHD/HDCVI/CVBS/IP)
  • 2-channel IP video input (expandable to 24 channels)
• Resolution Support:
  • Analogue: Up to 5MP Lite @ 12fps
  • IP: Up to 6MP with H.265+/H.264+ compression
• Output Options:
  • HDMI: 4K (3840×2160) @ 30Hz
  • VGA: 1920×1080 @ 60Hz

Intelligent Analytics

• AcuSense Technology:
  • Human/vehicle classification
  • Perimeter protection (4 channels)
  • Facial detection and capture
• Motion Detection 2.0:
  • Deep learning-based analysis
  • Event-based search functionality

Recording & Storage

• Compression Standards: H.265 Pro+/H.265/H.264+
• Maximum Bitrate: 6Mbps per channel
• Storage Capacity:
  • 1 × SATA interface (supports up to 10TB HDD)
• Playback: 16-channel synchronous playback

Network & Connectivity

• Network Interface:
  • 1 × Gigabit Ethernet port
  • Total bandwidth: 128Mbps
• Protocol Support:
  • ONVIF, Hik-Connect, TCP/IP, PPPoE
• Remote Access: Supports 128 concurrent connections

Physical Characteristics

• Dimensions: 315 × 242 × 45mm (1U rack)
• Weight: ≤2kg
• Power Supply: 12VDC (≤24W consumption)
• Operating Conditions:
• Temperature: -10°C to +55°C
• Humidity: 10% to 90% RH

Key Features

Advanced Video Compression
H.265 Pro+ technology reduces storage requirements by up to 90% compared to standard H.264 while maintaining image clarity, enabling extended recording periods without compromising quality.

Hybrid Camera Support
The flexible input configuration accommodates multiple analogue and IP camera technologies, allowing gradual system upgrades while maintaining compatibility with existing infrastructure.

Intelligent Event Management
Deep learning algorithms filter irrelevant motion triggers, focusing security alerts on genuine human or vehicle activity to improve monitoring efficiency.

Comprehensive Playback Options
Precise event search functionality enables rapid location of specific incidents, while facial detection indexing simplifies identification processes.

Professional Integration
Standard 19-inch rack mounting with dual display outputs and USB 3.0 interface ensures seamless integration into security control rooms and monitoring centres.

Typical Applications

• Retail security systems
• Educational facility monitoring
• Corporate campus surveillance
• Transportation hub security
• Government building protection

Designed for security professionals requiring reliable performance, this DVR system combines cutting-edge analytics with robust recording capabilities. The space-efficient 1U design houses comprehensive features typically found in larger systems, making it equally suitable for centralised installations or distributed network deployments. With intelligent event filtering and efficient storage management, the solution reduces operational overhead while enhancing surveillance effectiveness.
